XTRAN Example — Eliminate Dead Code in C, C++, Java, or C#

The following example uses a rule set written in XTRAN's rules language ("meta-code") that finds and suppresses every statement that is "dead" (cannot execute).  The rules comprise 147 non-comment lines of meta-code.

NOTE that these rules are not specific to C / C++ / Java / C#; they are language-independent, and are exactly the same rules used for similar examples for other languages.

Strategy

• Use statement navigation facilities provided by XTRAN's rules language to follow every execution path through the code, and mark each visited statement as "live".
• Use recursive iterator facilities provided by XTRAN's rules language to visit every statement.  If is not marked "live", suppress its output.

---

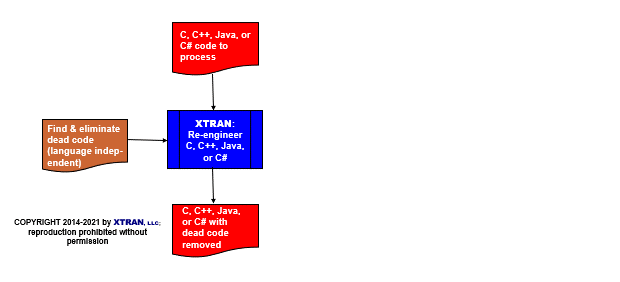

Process Flowchart

Here is a flowchart for this process, in which the elements are color coded:

• BLUE for XTRAN versions (runnable programs)
• ORANGE for XTRAN rules (text files)
• RED for code

---

Input to XTRAN:

void func(void)
{
        int i;

        if (i == 0 || i == 1)
            goto lbl2;
        i = 1;
        goto lbl3;
/*
 * The following code is dead and should therefore be eliminated:
 */
        if (i > 1)
            goto lbl1;
        i = 2;
lbl1:   i = 3;
        goto lbl3;
/*
 * The following statement is dead and should therefore be eliminated:
 */
        i = 5;
lbl2:   i = 6;
lbl3:   i = 7;
}

---

Output from XTRAN:

void func(void)
{
        int i;

        if (i == 0 || i == 1)
            goto lbl2;
        i = 1;
        goto lbl3;
lbl2:
        i = 6;
lbl3:
        i = 7;
}
