XTRAN Example — Error Check HTML Links & Generate Site Map

Scenario — as a Webmaster, you want to provide a site map for your Web site visitors' convenience. But your site is constantly changing, and manually maintaining a site map for it is turning into a real pain.

You're also worn out from clicking on each link to make sure it's not an orphan, and you're afraid you might have missed one.

XTRAN to the rescue!

The following map of this Web site was generated using rules for XTRAN, our computer language expert system, to process the site's HTML.

The original site map generation rules took about 8 hours to create and debug. (That's right, only 8 hours!)

We recently upgraded the rules to track all on-site links, using an XTRAN data base, and report any orphaned links. The upgraded rules comprise 336 code lines, and the upgrade took 6½ hours to create and debug.

The rules provide the following features when creating a site map (in a single XTRAN run):

Crawl the entire Web site, following all on-site page links to do so.
Use each HTML page's <TITLE> for its entry in the map.
Strip off a specified prefix, if it exists, from that <TITLE>.
Make each page's entry a link to that page.
Once a page's cited pages are listed under it, don't do so again for that page, to avoid infinite recursion due to cycles in the site's link graph.
Ignore links that are inside any of a specified list of tags, e.g. <FOOTER>.
Ignore links that are on any of a specified list of pages, e.g. this page.
Report any orphaned links, either to other pages or to NAMEs within pages, whose targets were not seen.

XTRAN took 10 seconds on a laptop computer to parse the 19,000+ HTML code lines in 89 HTML pages that comprise this Web site, error check its 600+ on-site links (335+ to pages and 275+ to NAMEs), and create the site map below. After making changes to the Web site, we rerun this process to reflect (and error check) the changes, and we update this page with the results.

The HTML mining and generation rules for this example can easily be enhanced to produce DSV output that can be interactively queried using existing XTRAN rules.

How can such powerful and generalized HTML mining and generation be automated in only 16½ hours and 336 lines of rules? Because there is so much capability already available as part of XTRAN's rules language. These rules take advantage of the following functionality:

Text file input and output
Text manipulation
Text formatting
Delimited list manipulation
Environment variable manipulation
Content-addressable data bases
"Per statement" recursive iterator
Access to XTRAN's Internal Representation (XIR)
Navigation in XIR
Creating new meta-functions written in meta-code, which we call user meta-functions
Recursive user meta-functions
Delayed / forced rules evaluation
Meta-variable and meta-function pointers

NOTE that the rendered HTML shown as XTRAN's output below was done with default conditions; XTRAN provides many options for controlling the way it renders code for output.

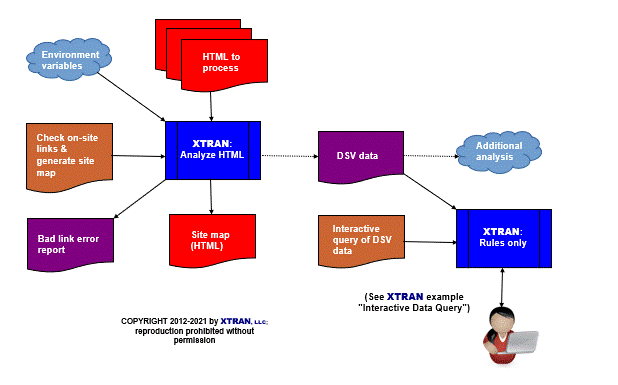

Process Flowchart

Here is a flowchart for this process, in which the elements are color coded:

BLUE for XTRAN versions (runnable programs)
ORANGE for XTRAN rules (text files)
RED for code
PURPLE for text data files
