XTRAN Example — Analyze Constant/Expression PL/I PROCEDURE Arguments

PL/I normally passes arguments to PROCEDUREs "by reference"; that is, what is passed is the address of the argument. However, if a calling argument is a constant or an expression, PL/I passes it "by copy": The PL/I compiler generates code to create a local copy of the constant or expression value and passes the copy's address as the argument.

When XTRAN translates PL/I to C/C++, it reflects this behavior: It normally generates code to pass an argument's address, but if the argument is a constant or expression, it generates code to declare a local copy and pass its address.

However, the chances are that if PL/I code passes a constant or expression as an argument, then the called PROCEDURE doesn't modify the corresponding parameter. Even if it does, it modifies only the copy whose address was passed to it. Therefore, in the translated C/C++ we can safely pass the parameter by value. In fact, XTRAN extends the PL/I language by adding a new declaration attribute, XTR_BYVAL, which tells XTRAN to translate the PROCEDURE parameter and all corresponding calling arguments as "pass by value".

The knowledge of which PROCEDURE parameters actually have matching arguments that are constants or expressions is scattered throughout all of the PL/I modules to be translated.

XTRAN's powerful PL/I analysis capability to the rescue!

The following example uses a set of XTRAN rules ("meta-language") that analyzes all arguments of all PROCEDURE calls in the code it is given and creates a data base of constant and expression argument occurrences, capturing the following information for each such occurrence:

PROCEDURE name, qualified if external, static, inferred, or nested
Argument number (1-n)
Source file name and line number

We run this analysis on each module to be translated; the rules append the occurrence information to the data base file we're creating. When we have all the data, we use another set of rules that creates a report of the data, eliminating duplicates and sorting occurrences appropriately.

We can then modify the appropriate PROCEDURE parameter declarations in the PL/I code to be translated, adding XTR_BYVAL where appropriate. Click to see an actual translation example using this technique for the code below.

The following input to, and output from, XTRAN is untouched except for line numbers added to the input for reference.

Process Flowchart

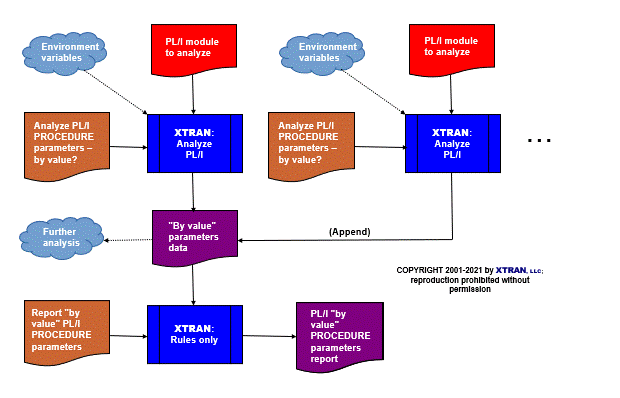

Here is a flowchart for this process, in which the elements are color coded:

BLUE for XTRAN versions (runnable programs)
ORANGE for XTRAN rules (text files)
RED for code
PURPLE for text data files

Input to XTRAN (demcpa-a.pli):

 1      DCL extprc1 ENTRY (FIXED (15) BIN, FLOAT (5) BIN,
 2        FIXED (31) BIN) EXT;
 3      DCL extprc2 ENTRY (CHAR (*), FIXED (31) DEC, FIXED (15) BIN) EXT;
 4
 5 %    DCL (ppint1, ppint2) FIXED;
 6 %    ppint1 = 1;
 7 %    ppint2 = 2;
 8 %    DCL (ppchr1, ppchr2) CHAR;
 9 %    ppchr1 = '''abc''';
10 %    ppchr2 = '''xy''';
11 %    DCL ppexpr FIXED;
12 %    ppexpr = ppint1 + 1;
13
14 prc: PROCEDURE;
15      DCL (int1, int2) FIXED (31) BIN;
16      DCL (flt1, flt2) FLOAT (5) DEC;
17      DCL (chr1, chr2) CHAR (5);
18
19 nstprc: PROCEDURE (arg1, arg2);              /*nstprc: PROCEDURE...;*/
20          DCL arg1 FIXED (31) BIN XTR_BYVAL;
21          DCL (arg2, i) FIXED (31) BIN;
22          i = extprc1(1, 2.0, i);             /*const args 1 & 2*/
23          END nstprc;
24      extprc1(int1, flt1, i);                 /*no const args*/
25      extprc1(1, flt1, int1);                 /*const arg 1*/
26      extprc1(int1 + 1, flt1, int1);          /*expr arg 1*/
27      extprc1(ppexpr, flt1, int1);            /*expr arg 1*/
28      extprc1(int1, 1.0, int1);               /*const arg 2*/
29      extprc1(ppint1, flt2, int1);            /*const arg 1*/
30      extprc2(chr1, int2, int1);              /*no const args*/
31      extprc2('abc', int2, int1);             /*const arg 1*/
32      extprc2(chr1, 2, int1);                 /*const arg 2*/
33      extprc2('a' | 'bc', 2, int1);           /*expr arg 1, const arg 2*/
34      extprc2(ppchr1, chr2, int1);            /*const arg 1*/
35      extprc2('abc', ppchr2, int1);           /*const arg numbers 1,2*/
36      nstprc(int1, int2);                     /*no const args*/
37      nstprc(1, int2);                        /*const arg 1*/
38      end prc;

Output from XTRAN:

                 Constant/Expression PROCEDURE Argument Numbers

Legend:

  [X] means declared "external"
  [S] means declared "static"
  [N] means nested declaration
  [I] means inferred declaration

extprc1[X]
    Argument 1
        demcpa-a.pli:  22,25,26,27,29
    Argument 2
        demcpa-a.pli:  22,28
extprc2[X]
    Argument 1
        demcpa-a.pli:  31,33,34,35
    Argument 2
        demcpa-a.pli:  32,33,35
nstprc[N]
    Argument 1
        demcpa-a.pli:  37
