XTRAN Example — Translate PL/M $IF/$ELSEIF/$ELSE Statements to C

The following example uses the standard set of XTRAN rules for parsing PL/M and translating it to C.  The input and output are untouched, except for parenthetical remarks added to the input.

NOTE that the translation shown below was done with default conditions.  XTRAN provides many options for controlling the way it translates.

---

Process Flowchart

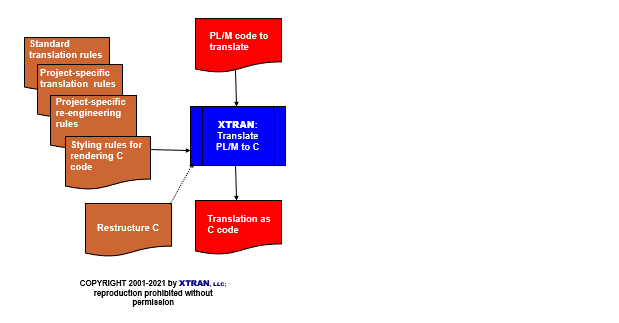

Here is a flowchart for this process, in which the elements are color coded:

• BLUE for XTRAN versions (runnable programs)
• ORANGE for XTRAN rules (text files)
• RED for code

---

Input to XTRAN:  demcif.plm

(Since we're not in an include file, all $IF/$ELSEIF/$ELSE consequences should be parsed, except those that enclose parts of statements.)

DECLARE foo BYTE;
$SET (SETV1,SETV2=3)
        DECLARE yes_1 WORD;                     /*should parse*/
$IF SETV1                                       /*true*/
        DECLARE yes_2 WORD;                     /*should parse*/
$ELSEIF SETV2=3                                 /*false*/
        DECLARE yes_3 WORD;                     /*should parse*/
        DECLARE yes_4 WORD;                     /*should parse*/
$ELSE
        DECLARE yes_5 WORD;                     /*should parse*/
        DECLARE yes_6 WORD;                     /*should parse*/
$ENDIF
        DECLARE yes_7_end WORD;                 /*should parse*/
$INCLUDE(FOO:DEMCIF1.PLM)

$SET (SETV3)                                    /*will survive*/
        foo =
$IF (SETV3)                                     /*won't survive*/
          2
$ELSE                                           /*won't survive*/
          3
$ENDIF                                          /*won't survive*/
          ;
$RESET (SETV3)                                  /*will survive*/
        foo =
$IF (SETV3)                                     /*won't survive*/
          2
$ELSE                                           /*won't survive*/
          3
$ENDIF                                          /*won't survive*/
          ;
$IF setv3
        IF foo = 1 THEN DO;
            foo = 10;
        END;
$ELSE
        IF foo = 2 THEN DO;
            foo = 20;
        END;
$ENDIF

$IF NOT setv3
        foo = 30;
$ENDIF

$SET (setv1, setv2)
$IF (setv1)
$IF (setv2)
        foo = 1;
$ENDIF
        foo = 2;
$ELSE
        foo = 3;
$ENDIF

$IF (setv3)
/*      foo = 4; */
$ELSE
/*      foo = 5; */
$ENDIF

Input to XTRAN:  demcif1.plm

(This file is included by demcif.plm.  Since we're in an $INCLUDE file, none of the control statements should survive, but should be honored.)

$SET (SETV3,SETV4=3)
        declare inc_yes_1 word;                 /*should parse*/
$RESET (SETV3)
        declare inc_yes_2 word;                 /*should parse*/
$SET (SETV4=2)
$IF (UNSETV1)                                   /*false*/
        declare inc_no_1 word;                  /*shouldn't parse*/
$ELSEIF (SETV4=2)
        declare inc_yes_3 word;                 /*should parse*/
        declare inc_yes_4_end word;             /*should parse*/
$ELSE
        declare inc_no_2_end word;              /*shouldn't parse*/
$ENDIF

---

Output from XTRAN:

	static unsigned char foo;
#undef PP_SETV1
#define PP_SETV1 0xFF
#undef PP_SETV2
#define PP_SETV2 3
	static unsigned short yes_1;		/*should parse*/
#if defined PP_SETV1 ? PP_SETV1 & 1 : 0		/*true*/
	static unsigned short yes_2;		/*should parse*/
#else
#if (defined PP_SETV2 ? PP_SETV2 : 0) == 3	/*false*/
	static unsigned short yes_3;		/*should parse*/
	static unsigned short yes_4;		/*should parse*/
#else
	static unsigned short yes_5;		/*should parse*/
	static unsigned short yes_6;		/*should parse*/
#endif
#endif
	static unsigned short yes_7_end;	/*should parse*/
#include "demcif1.h"

#undef PP_SETV3					/*will survive*/
#define PP_SETV3 0xFF
	foo = 2;
#undef PP_SETV3					/*will survive*/
	foo = 3;
#if defined PP_SETV3 ? PP_SETV3 & 1 : 0
	if (foo == 1)
	    {
	    foo = 10;
	    }
#else
	if (foo == 2)
	    {
	    foo = 20;
	    }
#endif

#if !(defined PP_SETV3 ? PP_SETV3 & 1 : 0)
	foo = 30;
#endif

#undef PP_SETV1
#define PP_SETV1 0xFF
#undef PP_SETV2
#define PP_SETV2 0xFF
#if defined PP_SETV1 ? PP_SETV1 & 1 : 0
#if defined PP_SETV2 ? PP_SETV2 & 1 : 0
	foo = 1;
#endif
	foo = 2;
#else
	foo = 3;
#endif

#if defined PP_SETV3 ? PP_SETV3 & 1 : 0
/*	foo = 4; */
#else
/*	foo = 5; */
#endif

---

Messages from the run:

demcif.plm(34) -- %XTRAN:  Warning!  Control line honored and deleted!
demcif.plm(36) -- %XTRAN:  Warning!  Control line honored and deleted!
demcif.plm(36) -- %XTRAN:  Warning!  Skipping code due to failed $IF/$ELSE!
demcif.plm(38) -- %XTRAN:  Warning!  Control line honored and deleted!
demcif.plm(42) -- %XTRAN:  Warning!  Control line honored and deleted!
demcif.plm(42) -- %XTRAN:  Warning!  Skipping code due to failed $IF/$ELSE!
demcif.plm(44) -- %XTRAN:  Warning!  Control line honored and deleted!
demcif.plm(46) -- %XTRAN:  Warning!  Control line honored and deleted!
